Reusable electronic security lock


Electronic Seals Spylock     reusable electronic seal     reusable electronic seal

SPYLOCK is a reusable electronic lock specifically designed for greater security in the supply chain of transport logistics.

SPYLOCK combines security and ability to monitor the status of the goods transported by trucks, trailers and containers through the following features:

  • Record any access to goods: opening, closing or tampering (device ID, and time).
  • It has a long operating time due to power with durable battery (USB rechargeable).
  • GPS tracking is available as an option.


electronic seals spylock

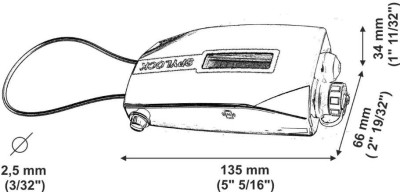

– Dimensions: 131 x 67 x 35 mm (5” 532” x 2” 4164” x 1” 38”)
– Wire standard lenght: 110 mm (4” 2164”)
– Wire diameter: 2,5 mm (332in”)
– Weight: 180 g
– Wire material: Stainless steel
– Device enclosure: ABS
– Industrial protection degree: IP65
– Mechanical closure: Closing actuator coupling with spring button
– Operative Temperature: – 20°C / +55 °C
– Storage Temperature: – 20°C / +55 °C
– Display: Backlit White, 32 characters (2 x 16)
– Communication interface: USB 2.0
– Battery Rechargeable 1100 mAh 3,7V
– Memory storage: 1000 data record
– Password protection: Software
– Tamper security: Sensor to detect case opening
– Manufacturer Code: UID CODE
– Management Code: Software Code


Packed in plastic case containing:
– USB Cable
– Manual, documentation and SDK (digital versions)
– Application software for PC connection and data logs download

Package size: 230 x 160 x 75 mm (9” 116” x 6” 1964” x 2” 6164”)
Package weight: 200 g




Upon customer request, LEGHORN GROUP provides SPYLOCK equipped with optional accessories to ensure proper mounting of the device on all types of surface. Two options are available in particular:

1) SPYLOCK with magnetic mounting: the back of the device body is equipped with four magnetic discs to let the device electronic-seal-spylockadhere tenaciously to any ferromagnetic surface, thus avoiding it sways and knocks because of the typical vibrations in transport means. Similarly, the magnetic attachment facilitates the adhesion to metal containers, barriers and fixed gates, etc.
The technical characteristics for single magnet are as follows:

  • Material: NdFeB (Neodymium Iron Boron)
  • External diameter: mm. 20
  • Thickness: mm. 5
  • Countersink: diameter mm. 7/3
  • Magnetisation: N42 Neodymium
  • Max working temperature: 80 ° C
  • Weight: gr. 20
  • Strength: Kg. 6
  • Magnetic disc is plastic-coated and thus rust-resistant; it is ideal for fixing in humid environments.

electronic-seals-spylock-22) SPYLOCK with hook and loop fastening: The high strength hook and loop  reclosable fastener provided by LEGHORNGROUP is the solution for quick fixation of SPYLOCK onto any type of surface. This fixing solution is designed for every use and application, quick and easy to implement.
The main technical characteristics of the special tape supplied are as follows:

  • Production technique: extrusion
  • Material: polyamide
  • Width: Nominal ± 1%
  • Thickness: 2.75 ± 0.15 mm
  • Weight: 580 ± 30 g / m²

Operational characteristics:

  • Mechanical strength LOOP closure
    • Peel strength: At least 1.5 N / cm
    • Shear strength: Minimum 12 N / cm²
    • Tensile strength: minimum 2.5 N / cm²
    • Breaking strength: Minimum 140 N / cm
  • Life: Loss 50% of grip after 1000 openings
  • Melting point: 250 C
  • Resistance to washing: Good
  • UV radiation resistance: Good
  • Resistance to acid attacks: Good
  • Moisture resistance: Good
  • Combustion Average Speed ( FMVSS302 Regulation): Max 100 mm / minute
