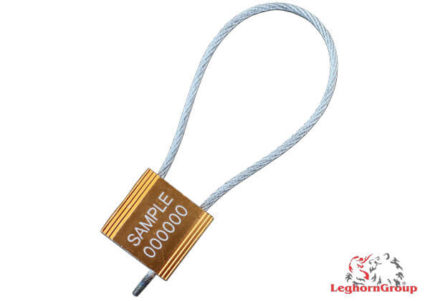

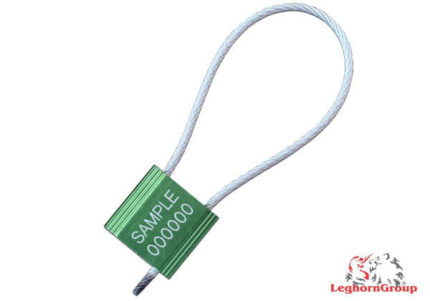

Cable seal 2.5×200 mm

Description

Very flexible metal security cable seal. It is an adjustable seal and be used in many different conditions.

It is particularly suitable to lock valves in the industry sector or trucks and oil tankers in transports.

The body is completely made in anodised aluminium (*) and a steel cable comes out of it.

Once inserted the opposite end of the cable into the hole, and pulled it to the maximum possible extent, there will be no way to open the seal unless by breaking it with good shears.

(*) Anodising is a non- spontaneous electrochemical process by which a protective oxide layer forms on the surface of the treated metal and protects it from corrosion.

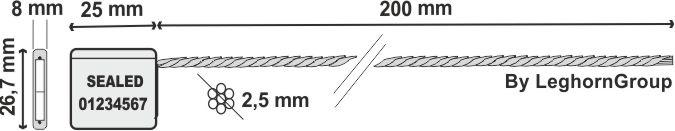

TECHNICAL DRAWING



SIZE
Diameter: 2,5 mm (0″ 3/32″)
Lenght: 200 mm (7″ 7/8″)
Different size available on demand.



MATERIAL
The body: painted aluminium
Cable: steel wire – different diameters

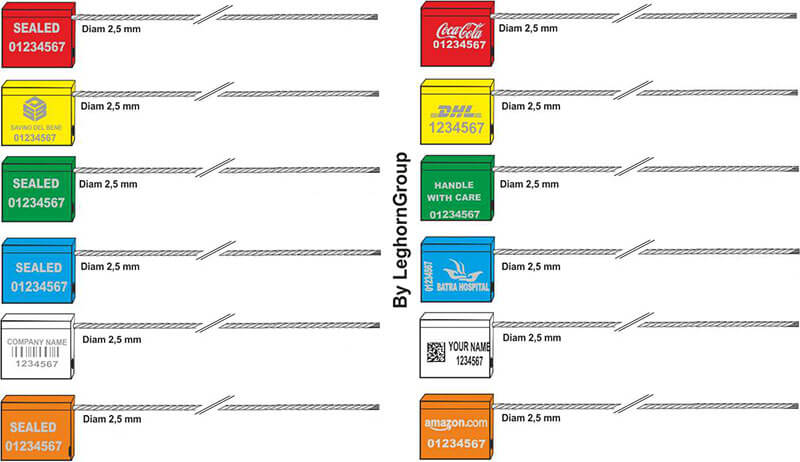

COLORS & CUSTOMIZATIONS



SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINTING
– Sequenced numbering up to 15 digits
– Also alphanumeric
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request



PACKAGING
500 pcs per carton
Carton size: 30×28×15 cm (11″ 13/16″×11″ 1/32″×5″ 29/32″)
Carton weight: 9,5 kg (20 lb)

Certificate MIRDC
