Plastic coated stainless steel wire

Stainless steel cable made of 0,32mm 7 wires


REQUEST FOR QUOTATION

Description

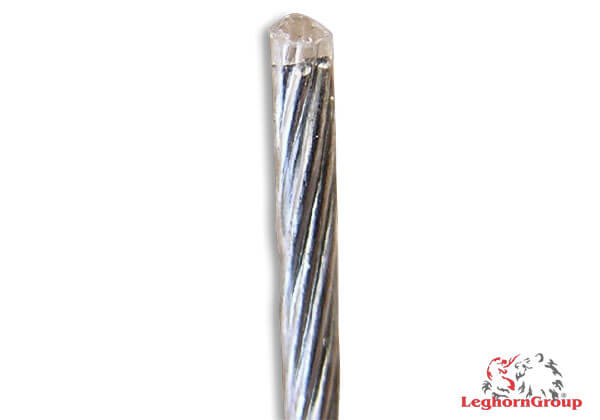

Plastic coated stainless steel wire

Stainless steel cable made of 0,32mm 7 plastic coated wires

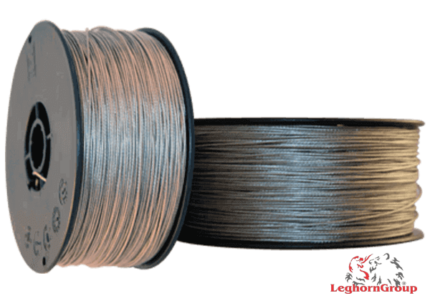

Spool of 100 metres : 320 gr. circa
Spool of 250 metres : 675 gr. circa

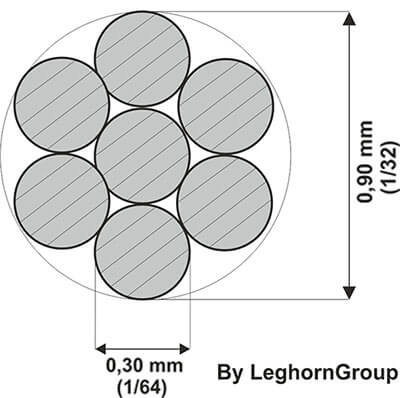

TECHNICAL DRAWING

stainless steel sealing cable technical drawing



SIZE
Diameter: 0,9 mm



1 MM DIAMETER STAINLESS STEEL  SEALING WIRE TECHNICAL DATA

GRADE N.W.(kg) TS(Mpa) EL(%)
304 483.88 785 45



1 MM DIAMETER STAINLESS STEEL  SEALING WIRE CHEMICAL COMPOSITION (%)

C Si Mn P S Cr Ni
0.03 0.46 1.30 0.026 0.008 18.23 8.03
